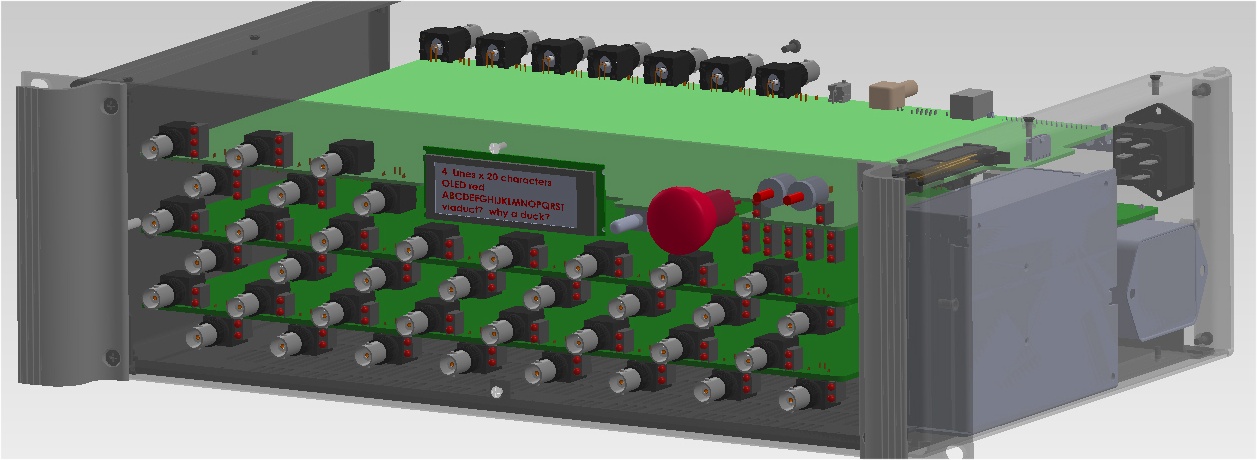

The capabilities of the TPS01 have been expanded and reconfigured to service continuously operating systems, such as radar transmitters. The TPS02 is highly reconfigurable - shown here is a 3U rack mount system with 36 analog channels, internal test pulse generation, LCD ergonomic display, event logging, and serial interface.
TPS02
Transmitter
Protection
System v02
Transmitter
Protection
System v02

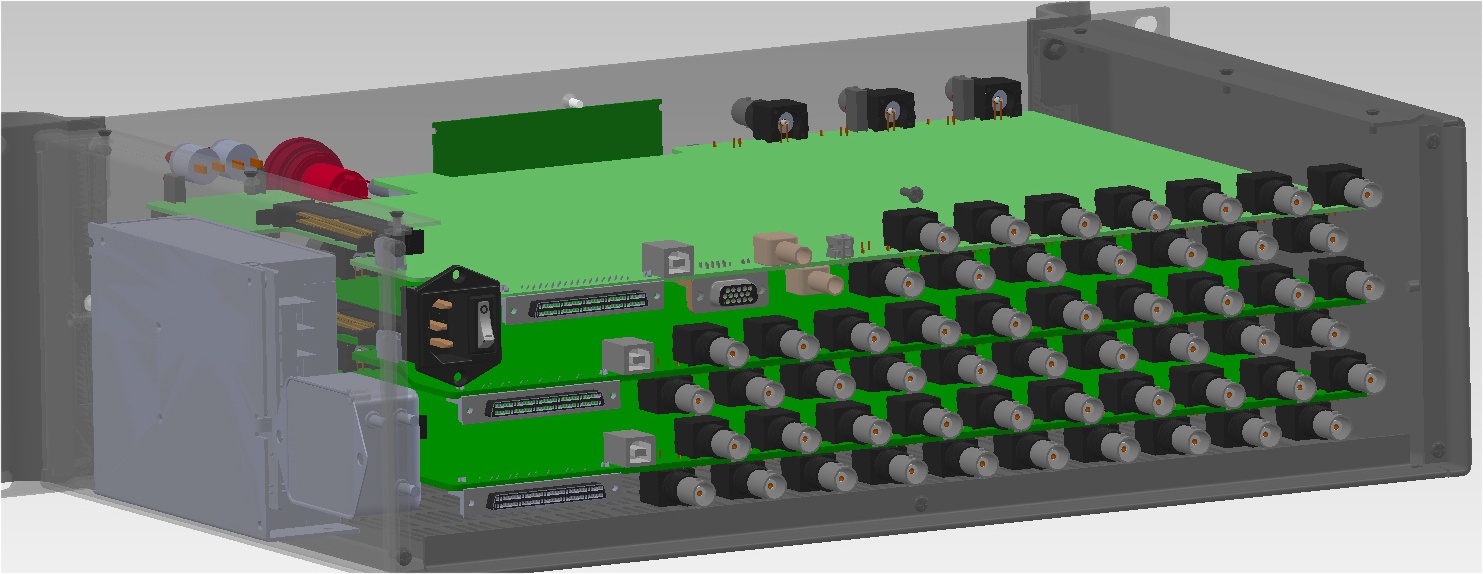

The TPS02 design has two board types - a control board and an analog board.
The control board features four analog channels with eight fault comparators configurable between them, S/H amps for in-pulse and inter-pulse detection, ADC sampling, PLC interface, state sequencing, event logging, LCD & rotary-encoder interface, >12 digital I/O channels, internal test-pulse generation, and inter-board communication mastering. External controls ports include USB, F/O isolated serial, and direct wired PLC connections - with other options available as custom configurations.
The analog boards operate as slaves to the control board, and each adds 16 additional analog channels with 16 configurable fault comparators, event logging, PLC interface, and several digital I/O channels.
All analog channels from both board types have rear-panel BNC input and front panel buffered test/monitor points on BNC. Channel fault indicator LEDs are adjacent to monitor BNCs.
Configuration options include differential amplifiers for shunt currents, analog multipliers for ratiomatic reflected power waveguide arc detection, and timing inhibits for fault comparators.
The system is expandable, with one control board and multiple analog boards - the figures shown are for a 36 analog channel system in a 3U standard rack mount.
Call Rockfield Research
to discuss
your application.
Click here to download a (generic) copy of the TPS02 User Manual.
(See also the TPS01 for pulsed transmitter systems, optimized for tokamak fusion klystron systems.)
